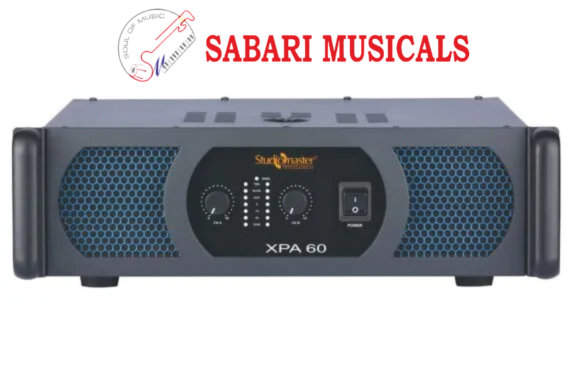

Studiomaster XPA 60 Dual Channel Amplifier (3000+3000watts)
Original price was: ₹73,570.00.₹66,999.00Current price is: ₹66,999.00.
| Power Output | |
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 3000 W |
| 2 Ω (EIA), 1kHz, 1%THD | 2 x 5600 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 2000 W |
| 4 Ω (EIA), 1kHz, 1%THD | 2 x 3100 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 2 x 1300 W |
| 8 Ω (EIA), 1kHz, 1%THD | 2 x 1700 W |
| Bridged Mode | |
| 4 Ω (True RMS), 20Hz-20kHz,1% THD | 6000 W |
| 8 Ω (True RMS), 20Hz-20kHz,1% THD | 4000 W |
| Damping Factor (8 Ω) | > 400 : 1 (@ 8Ω) |
| Frequency Range | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, RFI, short circuit, soft-start, overload |
| Input Connector (Per Channel) | XLR, jack stereo 6.3mm |
| Output Connector (Per Channel) | Speakon and Binding Post |
| Dimensions (W x D x H) mm | 484 x 575 x 133 (3U) |
| Net Weight (Kg) | 37 |
• High-quality balanced XLR and ¼” stereo jack input connectors.
• 3 switchable operational modes: stereo, mono and bridge
• Innovative Thermal Management System (TMS) with temperature-controlled gain variation for optimal thermal protection and uninterrupted sonic performance.
• High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2 Ohms.
• Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
• Limiter switch provided protects the Speaker Systems from damage due to distorted input signals.
• Responsive rotary volume control knobs.
• Low THD and high damping factor for excellent sound quality.
• High-quality glass epoxy, double-sided PTH PCBs and high-grade components ensure reliability even in tough ambient environs.
- • Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.
