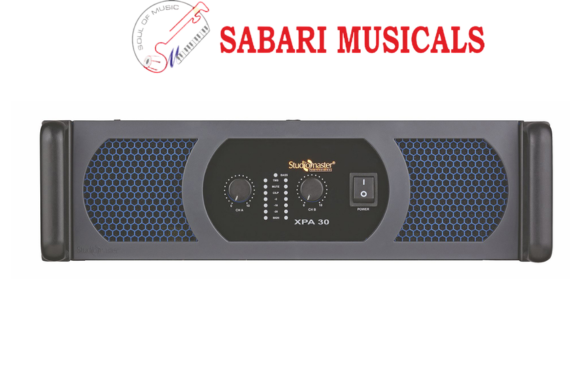

Studiomaster XPA 30 Power Amplifier
Original price was: ₹56,830.00.₹56,000.00Current price is: ₹56,000.00.
Model
XPA 30
Stereo Mode Power Output
2 Ω (True RMS),20Hz-20kHz,1% THD
2 x 1500 W
2 Ω (EIA), 1kHz , 1%THD
2 x 2200 W
4 Ω (True RMS), 20Hz-20kHz, 1% THD
2 x 1100 W
4 Ω (EIA), 1kHz, 1%THD
2 x 1680 W
8 Ω (True RMS), 20Hz-20kHz, 1% THD
2 x 700 W
8 Ω (EIA), 1kHz, 1% THD
2 x 900 W
Bridge Mode Power Output
4Ω (True RMS), 20Hz - 20kHz, 1% THD
3000 W
8Ω (True RMS), 20Hz- 20kHz, 1% THD
2200 W
Damping factor (8 Ω)
>400:1
Frequency Range
20Hz-20kHz (± 0.5dB)
Protection
Temperature, DC, RFI, short circuit, soft-start, overload
Input Connector (Per Channel)
XLR, 1/4” TRS Jack
Output Connector (Per Channel)
Speakon and Binding Post
Dimension (W x D X H) mm
482 x 515 x 133 (3U)
Net Weight (Kg)
30
The Studiomaster Professional XPA 30 is a high power amplifier with a Thermal Management System (TMS) – our innovative temperature-controlled gain variation technology integrated into the circuitry.
XPA 30
- •Professional-grade high-power stereo amplifier.
- •Features Thermal Management System (TMS) – innovative temperature-controlled gain variation technology.
- •Ultra-functional EQ Processing, Low Cut, and Subwoofer with crossover selection options.
- •High-quality balanced XLR and ¼” stereo jack input connectors.
- •3 switchable operational modes: stereo, mono, and bridge.
- •High-current toroidal transformers with high-endurance cores for greater transient response and low-noise even at 2Ω.
- •Sensitivity (0.775V or 1.2V) selection switch allows flexibility in connection of input sources.
- •Limiter switch provided to protect speakers from damage due to distorted input signals.
- •Responsive rotary volume control knobs.
- •Low THD and high damping factor for excellent sound quality.
- •High-quality glass epoxy, double-sided PTH PCBs, and high-grade components ensure reliability even in tough ambient environs.
- •Intelligent cooling using low-noise variable speed fans and direct-mounted over-designed heatsinks.
