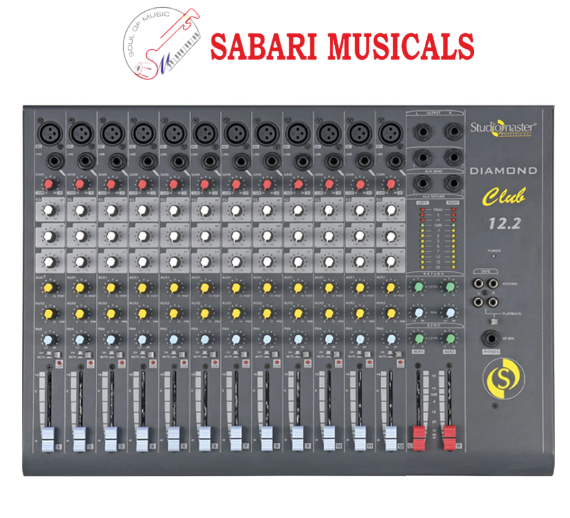

Studiomaster Diamond Club 12.2 Mixer
Original price was: ₹22,700.00.₹20,430.00Current price is: ₹20,430.00.
DC 12.2
- 12 Mic/Line
- Balanced Mic/Line Inputs
- Gain control with 3 Band EQ per channel.
- 2 Aux Sends/ Returns.
- 1 pre & 1 post aux sends rotary control per channel.
- L/R Pan Pot, Illuminated Mute Switch & Clip LED per Channel.
- 12 segments L/R LED meter for Master Level.
- Stereo Tape in/tape out, Headphone out.
- Blue Power on LED
- ¼ TRS, L/R Main Output.
- Elegant Shape – Curve front
- Stylish Grey panel
MODEL
DC 12.2
Nominal Gain (Mic/Line) 60dB/40dB
Max Gain (Mic/Line) 76dB/56dB
INPUT LEVELS SENSITIVITY
Mic (Gain Min/Gain Max) -12dBu / -60dBu
Line (Gain Min /Gain Max) +8dBu / -40dBu
INPUT IMPEDENCE
Mic Input Typically 5K Ω balanced
Line input 20K Ω (Balanced) /10K Ω (Unbalanced)
Main Output level (Nominal / Max) 0dBu (0.775V RMS) / +17dBu (5.5V RMS)
Main Output Impedance <50 Ω
Frequency Response 25Hz to 19KHz (+0/-1 dB)
Total Harmonic Distortion Better than 0.8%
Signal to Noise Ratio -76 dB
Clip indication 4 dB prior to true clip
Equalisation (Treble/Mid/Bass) ±16dB @ 10KHz/2.5KHz/100 Hz
EFX & USB
Power Supply 150V~250V AC/50Hz
Dimensions (W x D x H in mm) 515x376x89
Net Weight (Kgs.) 8
