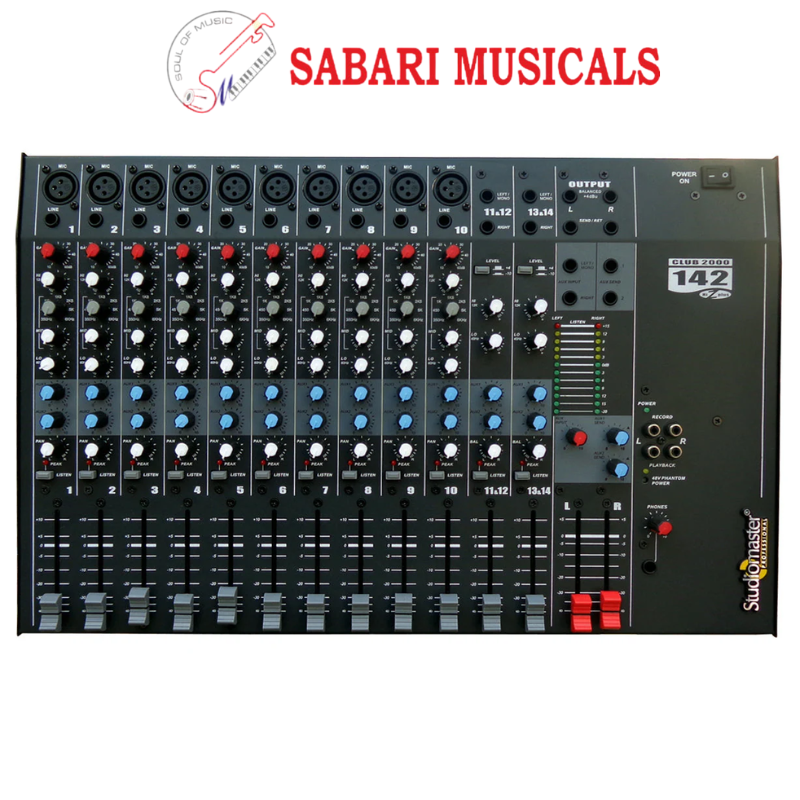

Studiomaster Club 2000 142 Mixer

C 142

• 10 Mic / Line + 2 Stereo Line Inputs.
• 3-band EQ with mid sweep on mono channel, 2- band on stereo.
• 2 Aux send / 1 stereo return with Rotary controls perchannel.
• Globally switched +48V phantom power switch.
• 5-band graphic EQ on board (Available only on the C142EFX).
• 12 Segments L/R Led Meter for master level.
• Stereo playback input / Rec out RCA jack.
• Balanced 1/4″ TRS Jack L/R main Output

SPECIFICATIONS

Nominal Gain (Mic/Line/Stereo Line) 60dB/40dB/12dB

Max Gain (Mic/Line/Stereo Line) 75dB/55dB/27dB

INPUT LEVELS SENSITIVITY

Mic (Gain Min/Gain Max) -10dBu / -60dBu

Line (Gain Min /Gain Max) +10dBu / -40dBu

Stereo (Gain Min /Gain Max) -0dBu/-12dBu

INPUT IMPEDENCE

Mic Input -Typically 2K Ω balanced

Line input 20K Ω (Balanced) /10K Ω (Unbalanced)

Stereo Line 15K Ω (Balanced) /10K Ω (Unbalanced)

Main Output level (Nominal / Max) 0dBu (0.775V RMS) / +22dBu (10V RMS)

Main Output Impedance <75 Ω

Frequency Response -20Hz to 20KHz (+0/-1 dB)

Total Harmonic Distortion <0.004%

Signal to Noise Ratio -75 dB

Clip indication 5 dB prior to true clip

EQUALISATION

Mono Mic [Treble/Mid(with sweep)/Bass] ±15dB @ 12KHz/350Hz-6KHz/60 Hz

Stereo Mic/Line (Treble/Bass) ±15dB @ 12KHz/45 Hz

EFX & USB

Phantom Supply +48V

Power Supply -150V~250V AC/50Hz

Dimensions (W x D x H in mm) -492 x 322 x 87

Net Weight (Kgs.) -5.5
