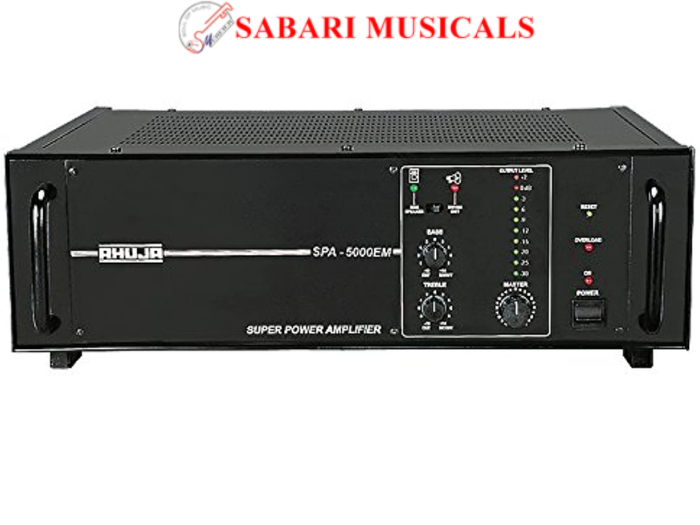

SPA-5000EM- Ahuja 500 Watts High Wattage PA Power Amplifier

HIGH WATTAGE PA POWER AMPLIFIERS

• Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
• Resettable circuit breaker for protection against overload and short circuit.
• Instant transfer to DC power (Car Battery) if AC power fails.
• Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
• Ideal for large installations where a high power output is required. A combination of a SSA-5000EM and one SPA-5000EM can deliver 1000W power output.

• Power Output	750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD
  Output Regulation	≤ 2 dB, no load to full load at 1kHz
  Input Channels	1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ
  Frequency Response	50-15,000Hz ±3dB
  Signal to Noise Ratio	60dB
  Tone Controls	Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
  Speaker Outputs	4Ω, 8Ω, 70V & 100V
  Power Supply	AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery)
  Power Consumption	AC: 1000VA DC: 8A
  Dimensions	W510 × H172 × D385 mm
  Weight	25.7kg
