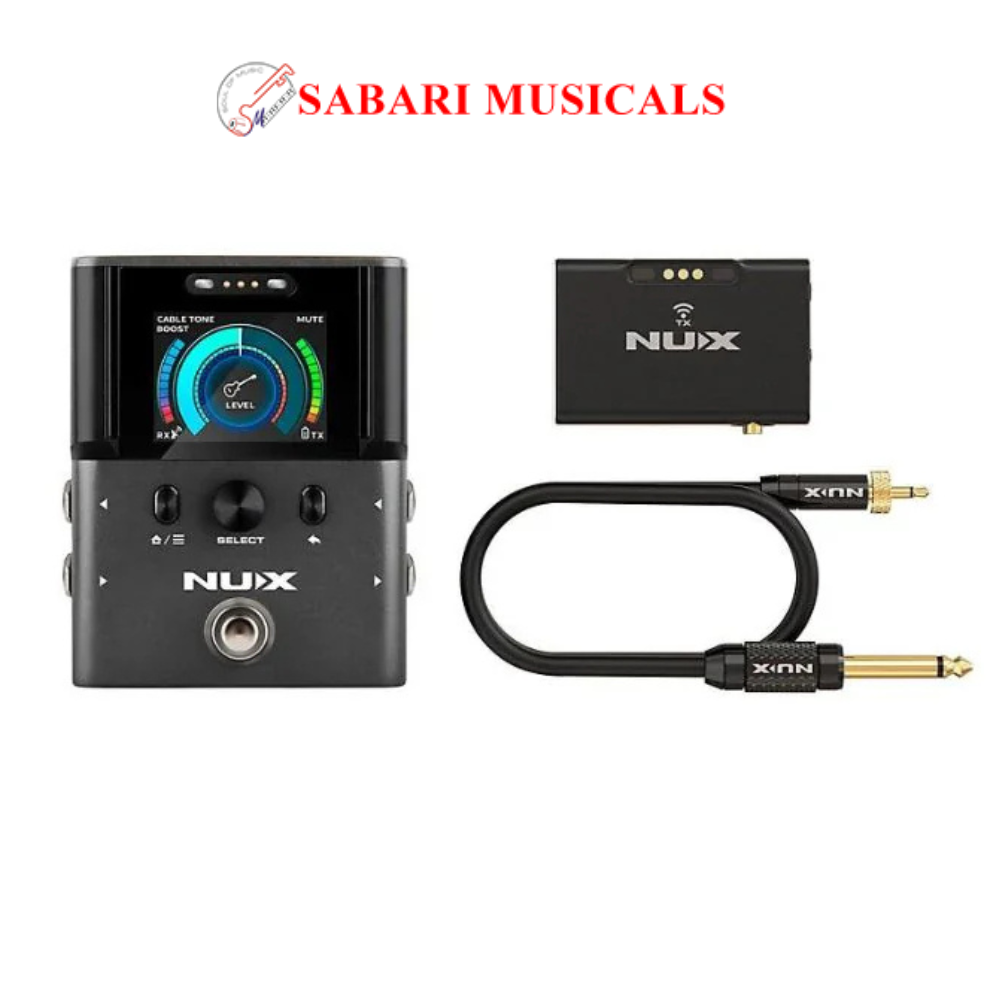

NUX B-8 Professional 2.4GHz Guitar Wireless System

NUX B-8 is a redefined wireless system with automatic setup, 2.4 GHz interference-free broadcasting frequency, and 24-bit 48 kHz high-quality audio transmitting. The signal transmitting latency is as low as 2.5ms at the best performance. The operation range is up to 50 meters (160-feet).

Automatic setup and friendly matching

The user-friendly matching system makes it easier to use, just turn on the TX&RX and it will be paired within a couple of seconds. Each wireless set has a unique pairing algorithm, it automatically detects

Specifications

Operating Frequency Band – 2400-2483.5MHz
Audio Quality – 24bit/48kHz
Frequency Response – 20Hz-20kHz
Latency – 2.5ms(best performance setting)-8.7ms(safety mode)
Input Impedance – 1 MΩ
Maximum Input Level – 1 kHz at 1% THD +6.2 dBV (5.78 Vp-p)
THD+N0.01% 1kHz, typical
Dynamic Range – 122dB, A-weighted(OUTPUT/SEND)
Output level Adjustment Range – mute -64dB~0dB
Auto-sleep Mode – N/A
Built-in Battery Capacity -3.7V/500mAh Rechargeable Li-polymer (Transmitter) TX Battery Life up to 6.5 hours
Power Requirements – 7V to 12V DC, 500mA min, negative tip power supplies(Receiver)
Operation Range – Up to 50 m (165 feet) maximum
TX dimesions – 72.5mm*49.3mm*23mm (L*W*H)
TX weight – 63g
RX dimensions – 122*95*60mm (L*W*H)
RX weight – 500g
