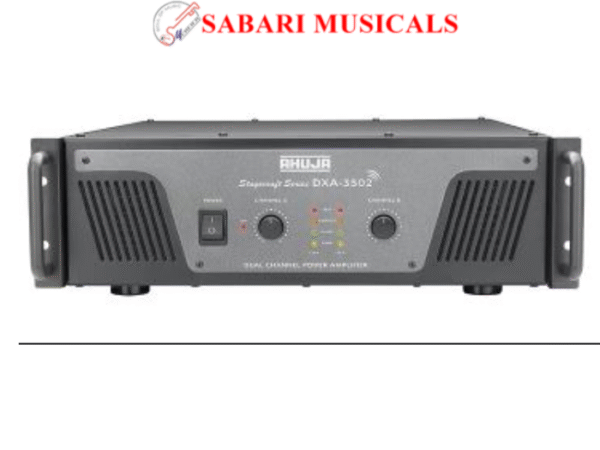

Ahuja DXA 3502 Dual Channel Power Amplifier
Original price was: ₹74,200.00.₹58,500.00Current price is: ₹58,500.00.
- DXA-3502 is a rugged and most reliable dual channel amplifier. It sets a new benchmark for professionals requiring a sonically superior, high power amplifier. It has been designed to operate under stringent working conditions such as wide voltage fluctuations due to gensets/AC mains and high ambient temperatures. Adequate safeguards have been built-in to counter adverse working conditions. Ease of operation, combined with service accessibility has been optimized in the design.
- Class H operation for optimum efficiency.
-
Stereo/Mono
8Ω 650W + 650W RMS, 4Ω 1200W + 1200W RMS, 2Ω 1750W + 1750W RMS
Bridged Output
8Ω 2400W RMS, 4Ω 3500W RMS
Single Channel Driven Output
8Ω 750W RMS, 4Ω 1350W RMS, 2Ω 1900W RMS
THD + N
0.5%
Frequency Response (-1dB)
20-20,000Hz
Power Bandwidth (0.5% THD)
20-20,000Hz
Input Sensitivity
0dBm (775mV) & 4dBm (1.23V)
Input Impedance
10k Unbalanced, 20k Balanced
S/N Ratio
95dB
Channel Separation
65dB at 1kHz
Damping Factor
400 : 1 (8Ω)
Slew Rate
35V/µs
Protections
Temperature, DC, RFI, Short Circuit, Overload, AC over voltage, Built-in limiter
Input Connectors
2×XLR, Stereo Phone Jack 6.3mm
Output Connectors
Speakon 4-Way, Heavy Duty Binding Post each channel
Cooling
Variable Speed DC Fan with Temperature Sensing
Front Panel Controls
2× 41 Step Level Attenuators
Indicators
ON, Signal, Clip, Temperatures, Protect (Ch. A & B)
Power Consumption
4200VA @ 240V / 50Hz
Dimensions
W482 × H153 × D615mm
Weight
37.5kg
