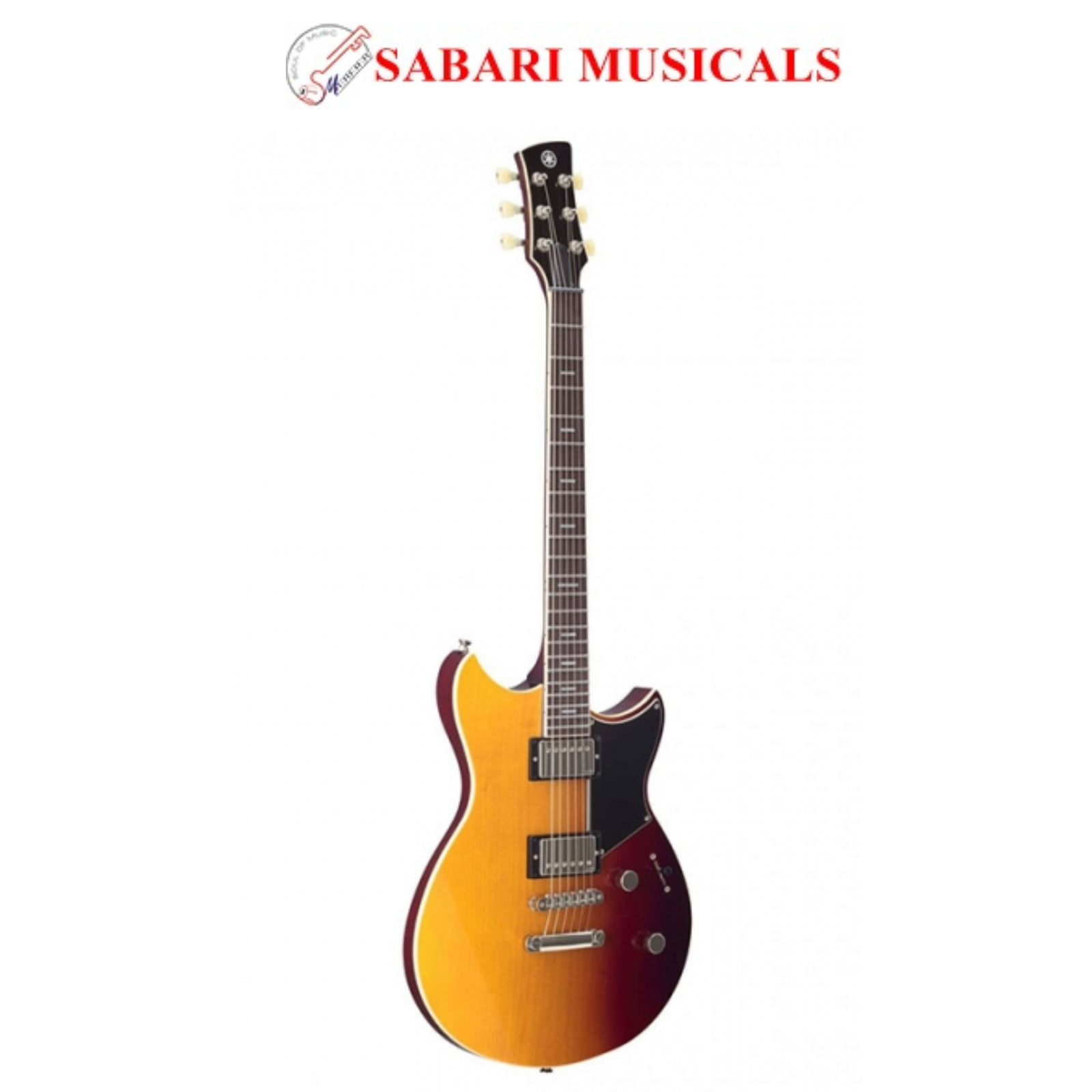

Yamaha Revstar Standard RSS20 Electric Guitar With Gig Bag – Sunset Burst

The RSS20 features six finish options, a chambered body and carbon-reinforced neck, dual humbucking pickups, 5-way switching, and a passive Focus Switch, providing exceptional versatility.

FEATURES

• 6 Café racer inspired finishes
• Chambered maple and mahogany body
• Carbon-reinforced 3-piece mahogany neck
• 2 Alnico V humbucking pickups
• 5-Position pickup selector
• Passive Focus Switch
• Deluxe gig bag included

THE NEW STANDARD With two available pickup configurations, 5-way switching, and the Focus Switch passive boost, the new Revstar Standard is all about versatility.

CHAMBERED BODY WITH ACOUSTIC DESIGN Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer. Revstar Standard and Professional models feature carrbon-reinforced neck. Professional modes also add carbon reinforcement to body for weight relief, vibration transfer and tone shaping.

5-WAY SWITCHING With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic “in-between” sounds.

FOCUS SWITCH The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.

CHOICE OF PICKUPS RSS20 and RSS20L feature humbuckers, and RSS02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.

General

• Construction: Set-in
• Scale Length: 24-3/4” (628.6mm)

Body

• Body Materials: Top: Maple / Back: Chambered 2-Piece Mahogany, Carbon Reinforcement
• Body Finish: Gloss Polyurethane

Neck

• Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
• Neck Finish: Satin Polyurethane
• Fingerboard Materials: Rosewood
• Fingerboard Radius: 12″ (304.8mm)
• Fret Wire: Jumbo Stainless steel
• Number of Frets: 22
• Nut Materials: PPS
• Neck Width @ 0 Fret / 12th Fret: 41.9 / 56.8 mm
• Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm

Electronics

• Neck Pickup: VH5n: Humbucker / Alnico V
• Bridge Pickup: VH5b: Humbucker / Alnico V
• Controls: Master Volume, Master Tone (Push-Pull “Focus Switch”)
• Pickup Switch: 5-Position Lever Switch

Hardware

• Bridge: Tune-O-Matic
• String Spacing: 10.5mm
• Tailpiece: Stopbar
• Tuning Machines: Die-Cast
