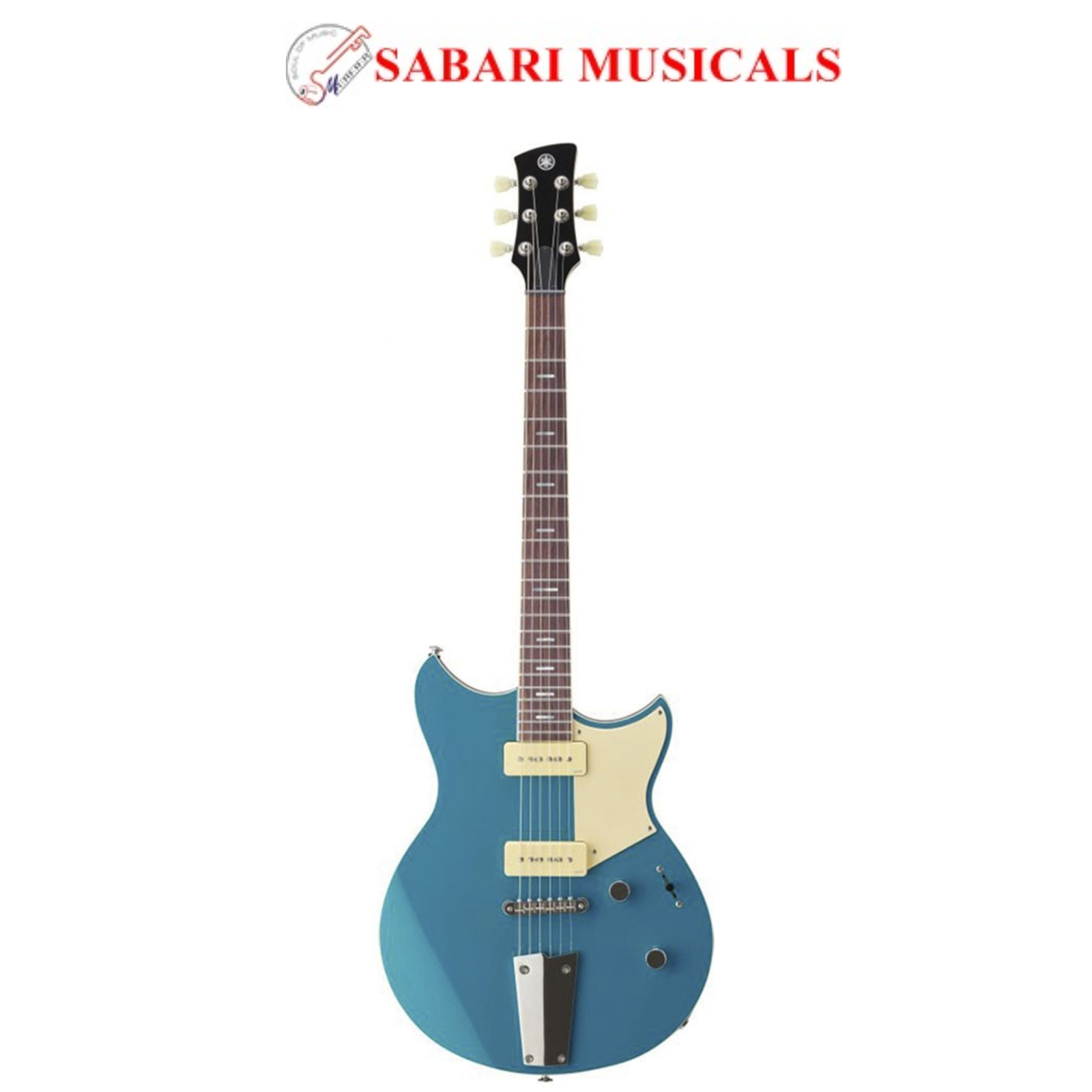

Yamaha Revstar RSS02T Electric Guitar With Gig Bag – Swift Blue

This Revstar Standard features P90-style single-coil pickups with 5-way switching and the Focus Switch boost, with a custom racing tailpiece.

FEATURES

• Chambered maple and mahogany body
• Carbon-reinforced 3-piece mahogany neck
• 2 P90-style pickups
• 5-Position pickup selector
• Passive Focus Switch
• Deluxe gig bag included

HANKO STAMP Used in place of a signature in Japan, the hanko stamp on every Revstar guitar is our seal of approval.

CHAMBERED BODY WITH ACOUSTIC DESIGN Revstar Standard guitars feature chambered bodies designed to sculpt tone and reduce weight, with carbon reinforcement in the neck to improve vibration transfer.

5-WAY SWITCHING With the same 5-way switching as Revstar Professional, the subtle phase shift on positions 2 and 4 offers a fresh take on classic “in-between” sounds.

FOCUS SWITCH The push/pull Tone control activates a passive boost with an effect similar to overwound pickups—darker highs, increased mids and lows, and an aggressive character.

CHOICE OF PICKUPS RSS20 and RSS20L feature humbuckers, and RSS02T offers P90-style single-coils. All pickups are custom designed by Yamaha and use Alnico V magnets for powerful tone.

GENERAL

• Construction: Set-in
• Scale Length: 24-3/4” (628.6mm)

BODY

• Body Materials: Top: Maple / Back: Chambered Mahogany
• Body Finish: Gloss Polyurethane

NECK

• Neck Materials: 3-Piece Mahogany, Carbon Reinforcement
• Neck Finish: Satin Polyurethane
• Fingerboard Materials: Rosewood
• Fingerboard Radius: 12″ (304.8mm)
• Fret wire: Jumbo Stainless steel
• Number of frets: 22
• Nut materials: PPS
• Neck Width @ 0 Fret / 12th Fret: 41.9 / 52.0 mm
• Thickness @1st Fret / 12th Fret: 21.0 / 23.9 mm

ELECTRONICS

• Neck Pickup: VP5n: P90 type Single coil / Alnico V
• Middle Pickup: –
• Bridge Pickup: VP5n: P90 type Single coil / Alnico V
• Controls: Master Volume, Master Tone (Push-Pull “Focus Switch”)
• Pickup Switch: 5-Position Lever Switch

HARDWARE

• Bridge: Tune-O-Matic
• Tremolo Arm: –
• String spacing: 10.5mm
• Tailpiece: Racing Tailpiece
• Tuning Machines: Die-Cast
• Pickguard: 3-Ply Cream
