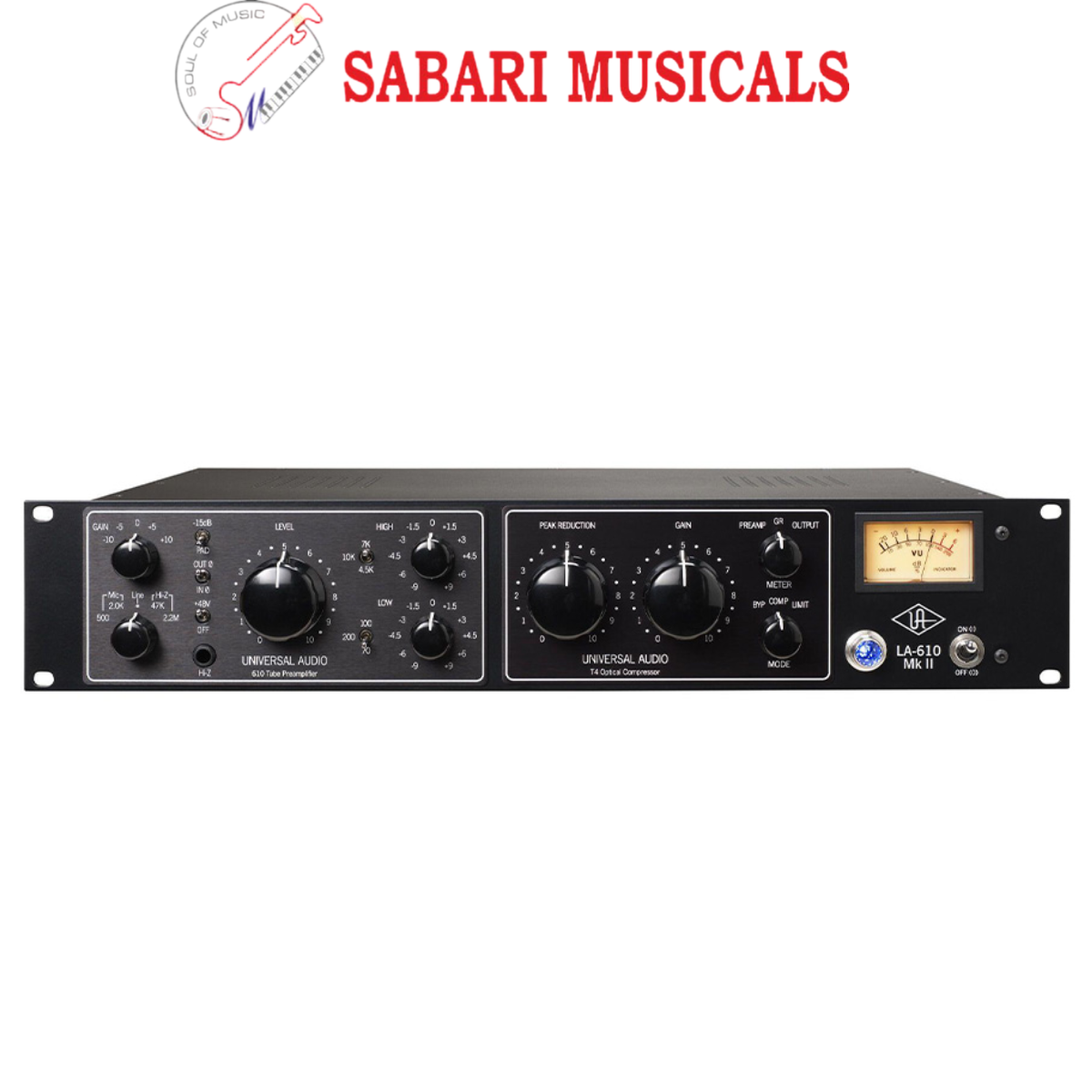

Universal Audio La-610 MKII Channel Strip

Universal Audio LA610 MKII Overview

The Universal Audio LA-610 MKII Classic Tube Recording Channel has true bypass, larger metering, and improved signal output.

The Universal Audio LA-610 MKII is a second-generation redesign of the original 2005 LA-610 model. While the preamp and compressor are similar to the original LA-610 that consumers have grown to know and love, user-requested improvements such as real compressor bypass, bigger metering, better output signal, and an auto-sensing power supply have been added, providing the end user with an improved user experience. The LA-610 Mk II retains the LA-610 Signature Edition’s popular “black on black” cosmetics.

The Universal Audio LA-610 MK 2 has incredible sound diversity and is a perfect front-end for tracking with current DAWs and serious project studios seeking the UA audio experience: Genuine quality and character at an affordable price.

The LA-610 Mk2 is based on the iconic console modules created by Bill Putnam in the 1960s. These preamps are well-known for their musical character and warmth, having been used to record innumerable masterpieces ranging from Sinatra to Van Halen. Following the preamp portion, the LA-610 Mk II has the T4 optical compressor.

The LA-610 T4 compressor’s easy operation and program-dependent nature give the same incredibly melodic control that has made the LA-2A such a popular classic for over 40 years. The Teletronix LA-2A’s heart and soul is the electro-optical detector, sometimes known as the “T4 cell”. The unique mix of electroluminescent panels and photo-resistors inside the T4 cell is the critical circuit components that give both compressors their distinct sound.

Universal Audio LA-610 MkII Specifications:

• Complete vintage tube channel strip at a project studio with affordable pricing.
• Mic pre/DI with gain and level controls, high and low frequency shelving EQ, and variable impedance switching.
• Bill Putnam’s legendary 610 tube mic pre and EQ were utilized on numerous famous recordings.
• Authentic Teletronix-style T4 opto compressor.
• Record your recordings with varying, vintage-style tonal colors.
• UA builds quality and legacy, audiophile-grade components.
• True bypass for the compressor circuit.
• Large and easily legible meter; enhanced output, auto-switching power supply.
• Handcrafted at the UA’s Scotts Valley, California laboratories.

Tech Specs

• Preamp Type:Tube
• Number of Channels:1
• Phantom Power:Yes
• EQ:Yes
• Compressor:Yes
• Release Time: Dual stage: 60 ms for 1st release, then 1 – 15 sec.
• Microphone Input Impedance: Selectable, 500 Ohms or 2k Ohms
• Balanced Line Input Impedance: 20k Ohms
• Maximum Gain: 40 dB (Line), +77dB (Mic)
• Noise Floor: -72 dBu 20 – 20kHz (Line In, unity Gain)
• Frequency Response:20Hz-20kHz
• Analog Inputs:1 x XLR (Mic), 1 x XLR (Line), 1 x 1/4″ (Hi-Z)
• Analog Outputs:1 x XLR
• Attack Time: 10 ms, program dependent
• Compressor Ratio: 3:1, soft knee, program dependent
• Rack Spaces:2U
• Power Source:Standard IEC AC cable
• Height:3.5″
• Depth:12.25″
• Width:19″
• Weight:12 lbs.

• Preamp Type	Tube
  Number of Channels	1
  Phantom Power	Yes
  EQ	Yes
  Compressor	Yes
  Release Time: Dual stage	60 ms for 1st release, then 1 – 15 sec.
  Microphone Input Impedance	Selectable, 500 Ohms or 2k Ohms
  Balanced Line Input Impedance	20k Ohms
  Maximum Gain	40 dB (Line), +77dB (Mic)
  Noise Floor	-72 dBu 20 – 20kHz (Line In, unity Gain)
  Frequency Response	20Hz-20kHz
  Analog Inputs	1 x XLR (Mic), 1 x XLR (Line), 1 x 1/4″ (Hi-Z)
  Analog Outputs	1 x XLR
  Attack Time	10 ms, program dependent
  Compressor Ratio	3:1, soft knee, program dependent
  Rack Spaces	2U
  Power Source	Standard IEC AC cable
  Height	3.5″
  Depth	12.25″
  Width	19″
  Weight	12 lbs.
