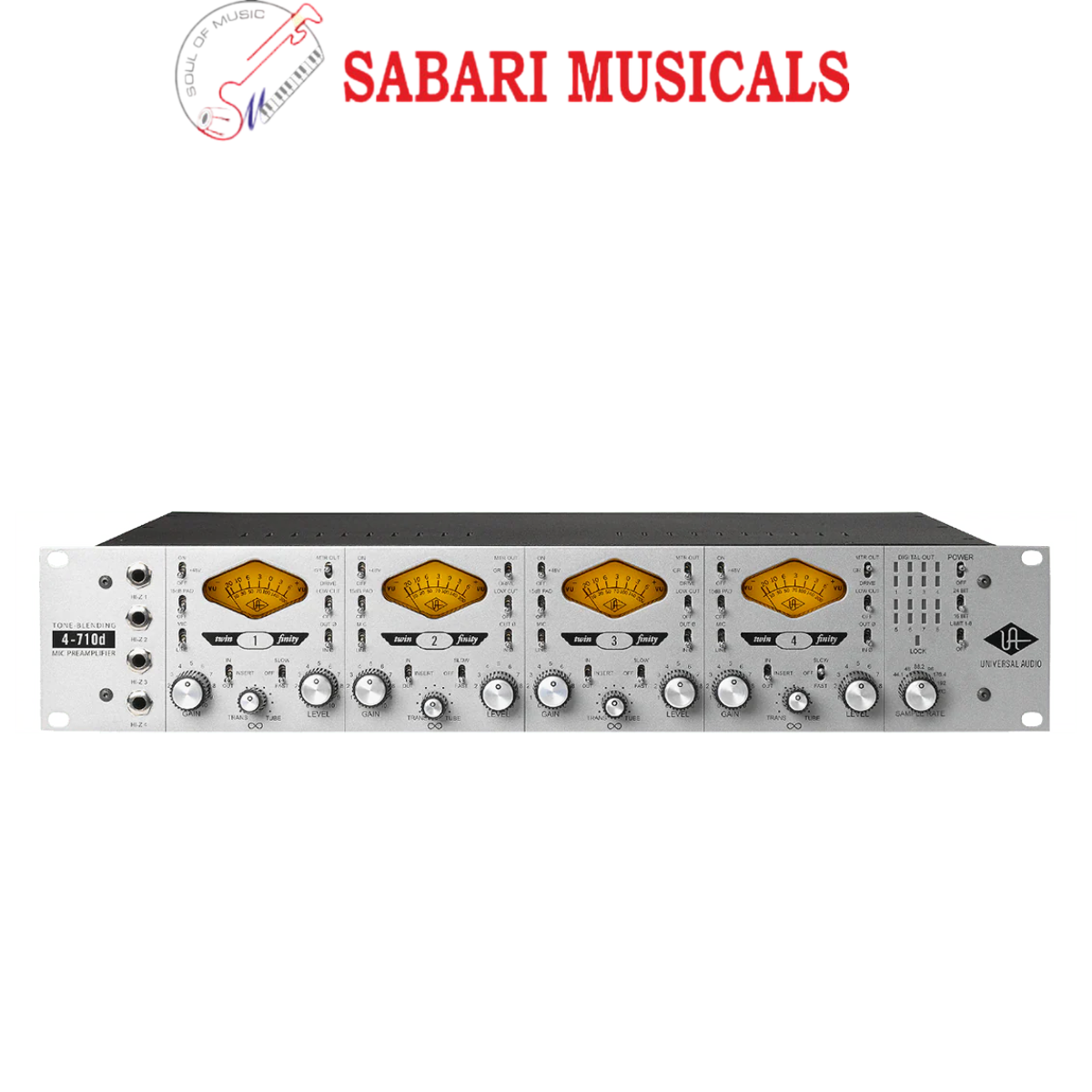

Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp

Buy Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp online in India – India’s music equipment superstore _x005F Universal Audio 4-710d 4-Channel Twin Finity Mic Preamp _x005F The Universal Audio 4-710d is a boutique quality, 4-channel microphone/line preamplifier with unique tube and solid state tone-blending capabilities—perfect for a wide range of microphone and instrument sources.

This versatile multichannel preamp offers selectable 1176-style compression circuitry on each channel, plus four additional line inputs feeding 8 channels of pristine analog-to-digital conversion Building upon UA’s classic analog design approach, combined with smart modern features, the 4-710d is the most flexible preamp in the UA lineup.

_x005F At the core of the 4-710d are four channels of tone-blending “Twin-Finity” mic preamps with true-bypass 1176-style compression, including specially tuned “fast” and “slow” settings Each of the four mic preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid state signal path.

Send and return jacks are available for external processing or signal access _x005F The eight analog inputs are digitized via ultra high-quality 24-bit A/D converters at selectable sample rates up to 192kHz.

Digital output is available via dual ADAT “lightpipe” or AES/EBU DB-25 connectors, facilitating integration with most popular audio interfaces _x005F Universal Audio 4-710d Features: _x005F Preamplifiers: _x005F 4 TEC Award-winning 710 Twin-Finity microphone/line preamps, each featuring: _x005F Dual-path 285-volt Class-A tube and transimpedance solid state preamps _x005F Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy _x005F Newly designed 1176-style compression circuit per preamp channel _x005F JFET Direct Input with 2.2M? ultra Hi-Z impedance w/auto input override _x005F Large backlit VU meters for flexible metering of input drive, gain level, and gain reduction _x005F Balanced send/return inserts (half-normalled) _x005F 48V phantom power _x005F 75Hz low cut filter _x005F Polarity switch _x005F Monolithic balanced output stage.

_x005F Analog-to-Digital Conversion: _x005F 8 channels of high quality 24-bit A/D conversion: _x005F Selectable sample rates up to 192kHz _x005F Digital output via dual ADAT optical and AES/EBU DB-25 connectors _x005F 8-channel soft limiter (switchable for all channels) _x005F Ultra-low jitter clock subsystem _x005F LED metering array with clip/hold indicators _x005F 75? BNC work clock I/O _x005F Digital outputs anti-pop protection on power-up _x005F Other: _x005F _x005F Universal voltage internal power supply _x005F Heavy-duty metal construction, two-space rack unit.

_x005F Universal Audio 4-710d Specifications: _x005F Microphone Preamplifier to Line Out: _x005F Gain Range: 56dB _x005F Min Gain: 14dB _x005F Max Gain: 70dB _x005F Max Input Level (bal): 6.7dBu _x005F Max Output Level (bal): 20dBu _x005F Input Impedance (bal): 2k? _x005F Input Impedance (Hi-Z): 2.2M? _x005F Output Impedance (bal): 600 ? _x005F Equiv Input Noise (150?, 56dB gain): -127dBu _x005F Frequency response (20Hz-20kHz): +0.1/-0.15dB _x005F Crosstalk (max gain, 1kHz): _x005F Low Cut Filter: _x005F Type: Bessel 2nd Order _x005F Corner Frequency: 75Hz _x005F Attenuation (20Hz): -23dB.

_x005F Pad: _x005F Attenuation: 15dB _x005F Phantom Power: _x005F Phantom Power Current (per jack): 10 mA _x005F Voltage: 48V ±1V _x005F Compressor: _x005F Threshold: 10dBu _x005F Compression Ratio: 4:1 _x005F Fast Attack Time: 0.3ms _x005F Fast Release Time: 100ms _x005F Slow Attack Time: 2.0ms _x005F Slow Release Time: 1100ms.

_x005F Analog-To-Digital Converter Section: _x005F Note: all specifications are typical performance unless otherwise noted Unless otherwise noted, all specifications are 20Hz-20kHz, minimum gain, maximum level, 24-bits, all switches in neutral or off mode, 100% solid state, -1dBFS output.

_x005F Microphone & Line Inputs (Ch 1-4): _x005F THD+N (-1dBFS): -100dB (0.001%) _x005F SNR (A-Wt): 110dB _x005F Dynamic Range (-60dBFS, A-wt): 110dB _x005F Frequency response: +0.1/-0.15dB _x005F Stereo Phase: _x005F Line Input (Ch 5-8): _x005F THD+N (-1dBFS): -103dB (0.0007%) _x005F SNR (A-Wt): 117dB _x005F Dynamic Range (-60dBFS, A-Wt): 117dB _x005F Frequency response: ±0.1dB _x005F Stereo Phase: _x005F
