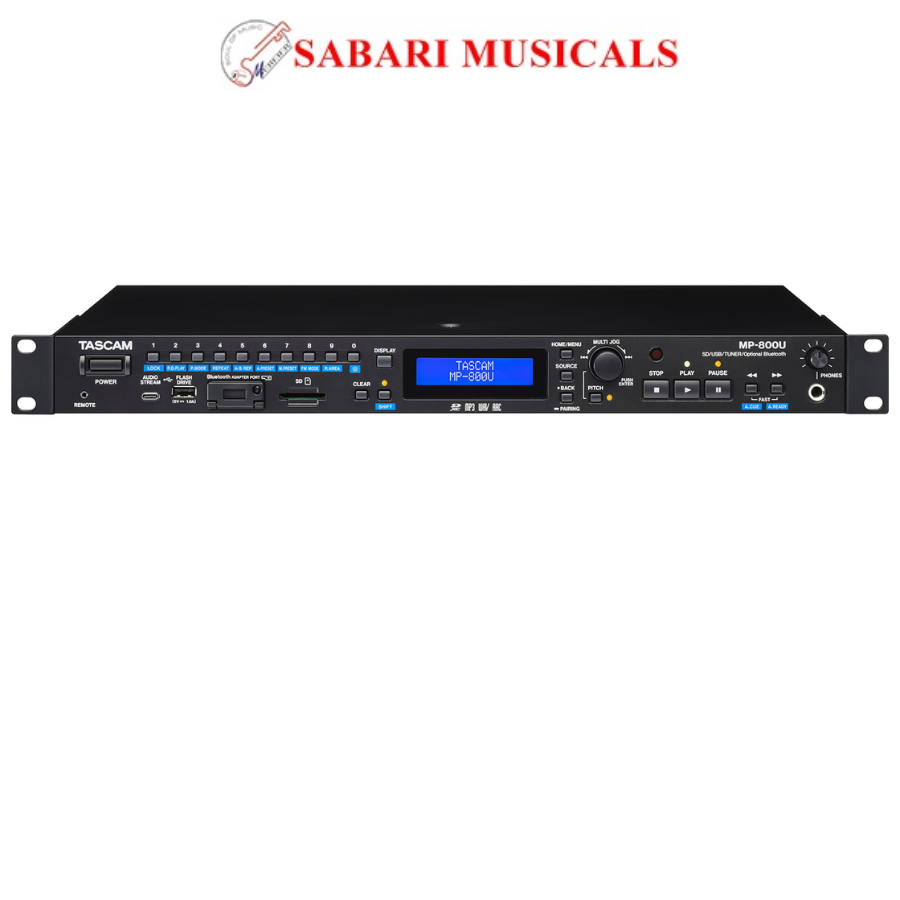

TASCAM MP-800U SD/USB Player with USB DAC and FM Tuner

The MP-800U is a 1U rack-sized SD/USB player equipped with a USB DAC and FM tuner. In addition to its extensive playback capabilities, it supports both balanced and unbalanced outputs, making it an all-in-one player suitable for deployment in a variety of environments, including restaurants, wedding halls, event venues, and PA/SR (live concerts, plays, etc.). By installing optional accessories (sold separately), you can expand its functionality with features such as Bluetooth audio playback, app remote control, and external control via Ethernet. [Link to the SD/USB player with USB DAC/FM tuner viewing page (external site)] Features The MP-800U is a 1U rack-sized SD/USB player equipped with a USB DAC and FM tuner. In addition to its extensive playback capabilities, it supports both balanced and unbalanced outputs, making it an all-in-one player suitable for deployment in a variety of environments, including restaurants, wedding halls, event venues, and PA/SR (live concerts, plays, etc.). By installing optional accessories (sold separately), you can expand its functionality with features such as Bluetooth audio playback, app remote control, and external control via Ethernet. List of Features
・SD card/USB memory player (supports WAV, MP3, AAC)
・USB DAC for audio playback from a computer
・FM tuner with wide FM support
・Bluetooth audio support
※1
・XLR balanced output and RCA unbalanced output
・Auto cue
・Auto ready
・Pitch control (+/-16%)
・Q-SYS plug-in (under development)
※2Other Features
・Power-on play for automatic playback when the power is turned on
・Incremental play for skipping to the beginning of the next track
・Key original for changing playback speed without changing pitch
・Fade-in/fade-out playback
・A-B/ALL/SINGLE repeat
・Direct track search using the 10-key pad on the unit
・Supports iOS/Android compatible TASCAM MEDIA CONTROL Wireless control via Bluetooth CENTER
*1
– Direct play of up to 20 songs using the separately sold RC-20 remote controller
– External control via the separately sold IF-E100 Ethernet control card
– Fader start/stop and tally output via the CONTROL I/O terminal (3.5mm TRS)
– Dedicated RCA unbalanced tuner output terminal
– Level adjustment for each output
– Panel lock for increased safety during operation
– Headphone output terminal
– 1U rack mount size
*1 Requires the separately sold AK-BT2 Bluetooth adapter.
*2 Requires the separately sold IF-E100 Ethernet control card.
・External dimensions: 482.8 x 46.5 x 297.1 mm (W x H x D, including protrusions)
・Weight: 2.7 kg
Included Items
・MP-800U x 1
・Power cord x 1
・3P-2P conversion adapter x 1
・Wireless remote control (TASCAM RC-MP800) x 1
・AAA batteries x 2
・FM antenna x 1
・Rack mount kit (mounting screws x 4, washers x 4)
・Security screw x 1
・TASCAM ID registration guide x 1
・Instruction manual (basic operation) (with warranty) x 1
