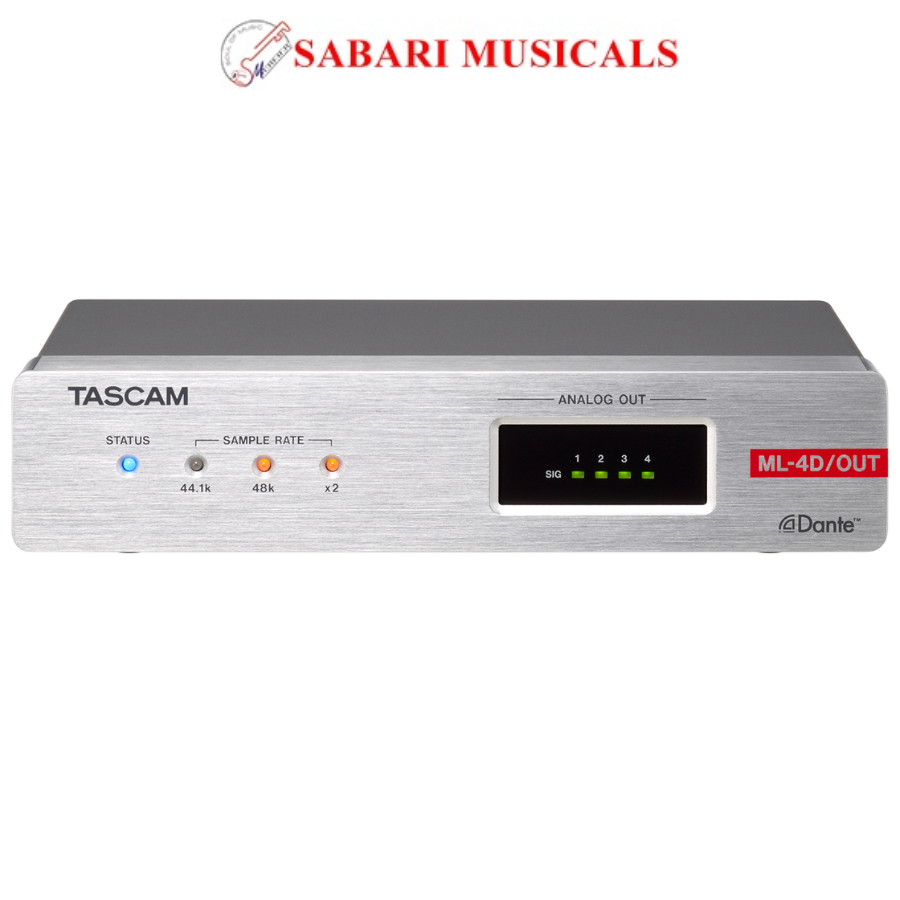

Tascam ML-4D/OUT-E Line Output Dante Converter with Built-In DSP Mixer
₹64,738.00
Compatible with Dante Domain Manager and AES67 Mode
The Dante Compact Processor Series are compatible with Dante Domain Manager, which features security functions and enables the use of wide-area networks. This helps the Dante Compact Processor Series access easily to Dante systems using already established network infrastructures. With the AES67 mode, connection to AES67 network systems is also possible.Dante Network Audio
There are some benefits when adopting the Dante Network Audio to your setup- It is possible to have a maximum transmission of 128ch I/O with a single CAT5e cable. This leads to fewer cables needed, not to mention the reduction of costs on wiring and space for cable pits.
- All equipment can be freely connected and routed by applying star connections to provide improved connection flexibility to your current setup.
Key Features
- Designed for PA, SR, and Pro Audio Environments
- 4 Analog Line Outputs
- 4 Dante Inputs / Outputs
- Flexible Routing
- PoE (Power over Ethernet) Power Supply
-
Brand
Tascamphysical specifications
Dimensions 8.4″ x 1.7″ x 5.4″ Weight 30.4oz detailed specifications
Connectors Analog: Euroblock (Balanced) 3.81 mm Pitch<br>Other I/O: RJ45</br> wireless transmitter specifications
Frequency Response Dante In/Line Out: ±0.5 dB: 20 Hz – 20 kHz (44.1/48 kHz Sampling Frequency, JEITA)<Br>±0.5 dB: 20 Hz – 40 kHz (88.2/96 kHz Sampling Frequency, JEITA)</br> OVERVIEW
The ML-4D/OUT-E is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-E is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-E supports up to 96kHz/24bit and uses Euroblock connectors for analog line output.
4 Line Output and 4 Dante Input/Output
The ML-4D-OUT/-E not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.
Half Rack Compact Processor Series
The Dante Compact Processor Series has a line-up of models with different input/output specifications:
For analog input/output models, the branch extends with units equipped with Euroblock or XLR connectors that users can choose depending on their usage. By combining multiple different units all at once, it is possible to match and introduce them into various systems.
Optimal Unit for Different Dante Systems
The Dante Compact Processor Series provides easy additional mic/line or AES/EBU input/output to several situations and places such as public facilities, broadcasting stations, recording studios, etc. where Dante systems are being used. They are the optimal input/output unit for small scale environments
Structing Small Scale Systems
The Dante Compact Processor Series are equipped with a matrix mixer that includes a DSP feature with compressors, parametric EQs, limiter, delay, and more functions. From the input of microphone signals to the output of powered speakers; also applicable with recording/playback systems, the Dante Compact Processor Series can build up a complete small system on their own.
Flexible Routing
Routing to each Dante device is easy via Dante controller. Input/output units can be added flexibly to new or already established Dante systems.
