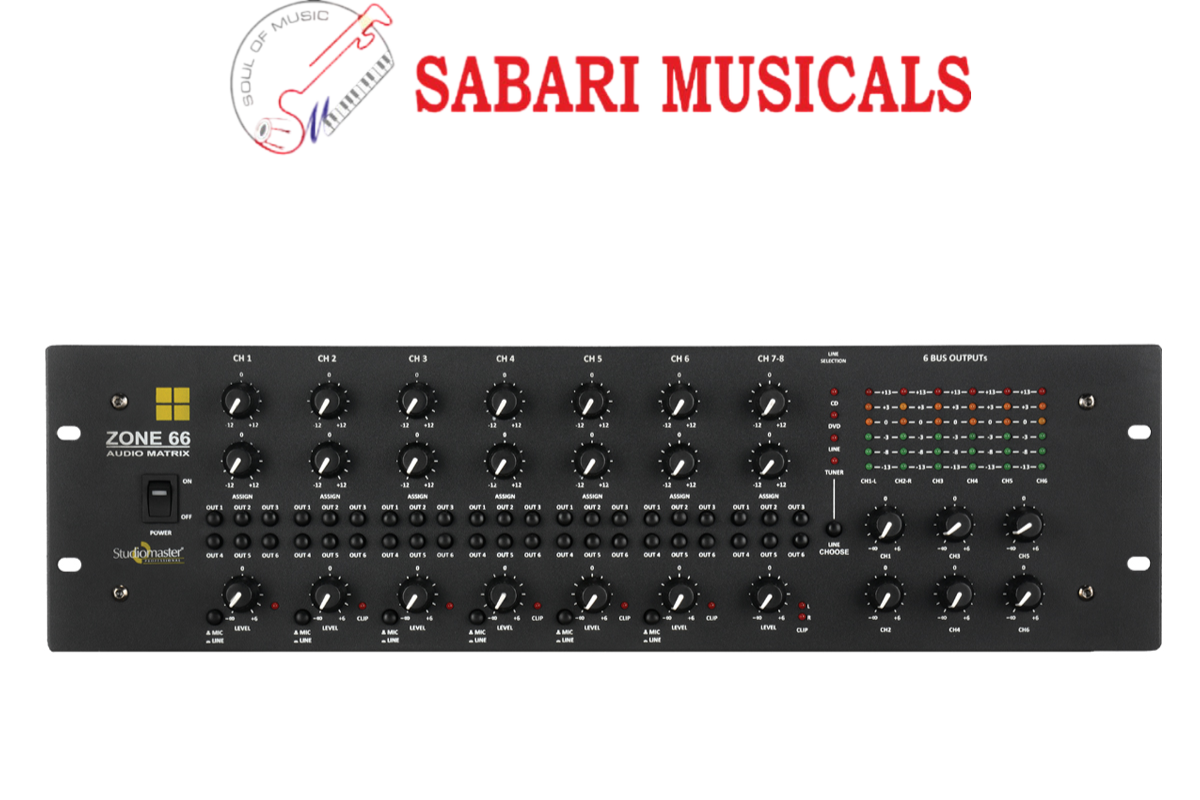

Studiomaster Mixer Zone 66

The Studiomaster Mixer Zone 66 is a 6 zone paging method created for a variety of environments such as Factories, Hospitals, Schools, etc. It has 6 Mic/Line inputs switchable to 6 outputs with an objective Gain controller, 2 band equalizer, Level control and CLIP led. There is Matrix assignment: Each input channel can be attached to any combination of outputs. Input connectors are 6X Line ( Stereo RCA), 6X Mic ( XLR ) and 4X Aux ( Stereo RCA ). Output connectors are 6X ( XLR balanced and RCA Unbalanced ).

Product Specification:

• One Stereo channel with 4-way input selector Gain control, 2 band equalizer, Level control and CLIP led.
• Each Microphone input is with low noise preamplifier and +48V Phantom voltage range switch.
• 6 mono outputs with level switches and 6-digit LED level meter.

Product Information:

• Brand: Studiomaster
• Model Number: ZONE 66
• Output Level: +6dB
• Net Weight (Kgs.): 4.8
• Frequency Response: 20Hz – 20KHz
• THD (Mic / Line): < 1% / <0.05%
• Input Gain ( Mic / Line ): +12 to +60dB
• Dimensions (W x D x H)mm: 483 x 172.5 x 133 (3 U)
• Tone Control – Bass / Treble: ± 12dB / 100Hz / ±12dB / 10kHz
• Output Connectors: 6 x (XLR balanced and RCA Unbalanced)
• Signal to Noise Ratio Mic / Line: Better than -75dB / Better than -85dB
• Input Connectors: 6 x Line (Stereo RCA), 6 x Mix (XLR) & 4 x Aux (Stereo RCA)
