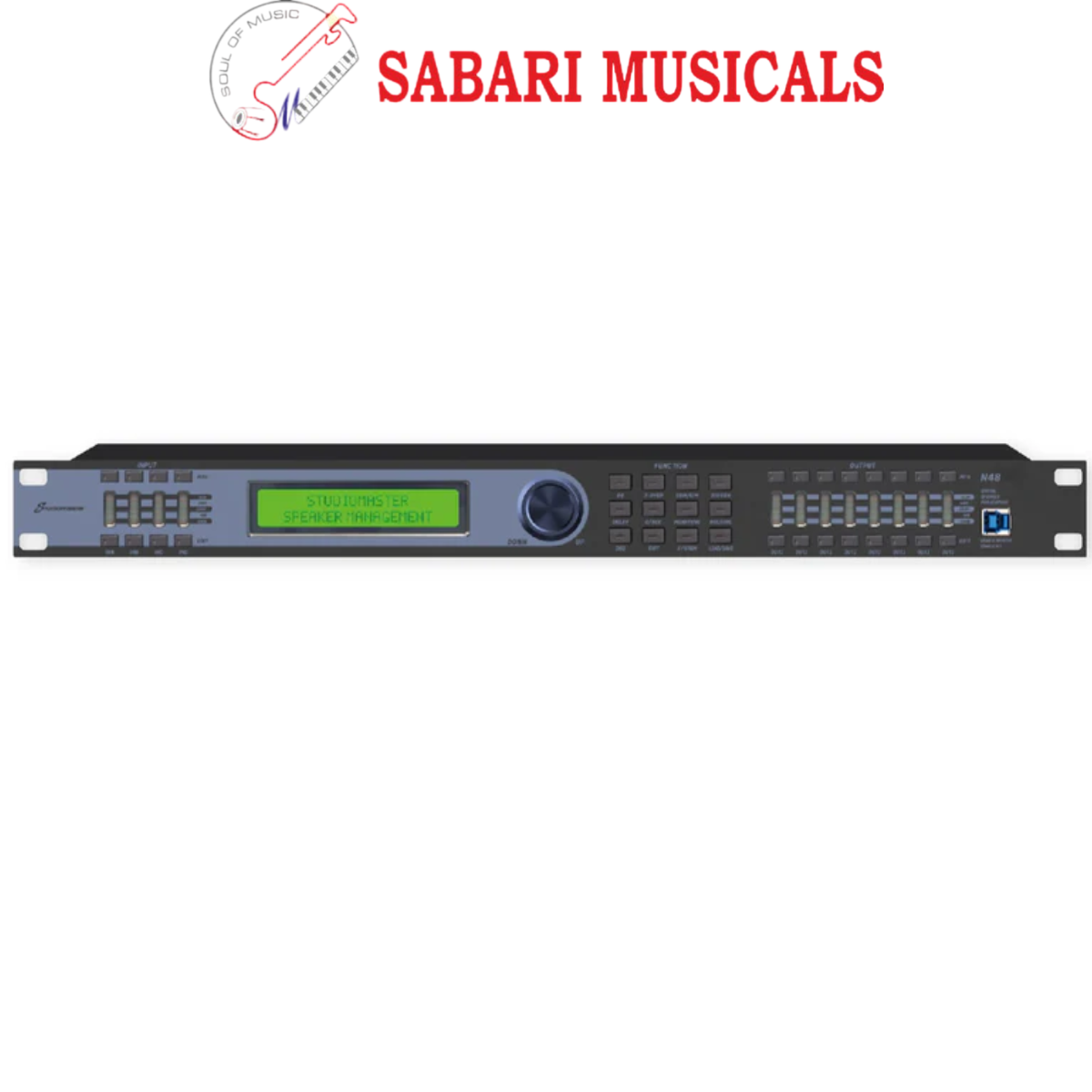

Studio Master N48 Digital Audio Processor

Studio Master N48 Digital Audio Processor Overview: Features: Built in 32-bit ADC/DAC high-speed conversion chip; 96kHz high sampling rate makes sound perfectly reproduced. Provide USB2.0, USB3.0, RS485, TCP/IP and other interfaces to connect computers or central control equipment. The RS485 can be used to cascade 250 devices with IDs for control.

Directly use the function keys and knobs on the panel to set functions or connect computers to control through PC control software. A single machine can store 60 groups of user program data. 2 x 24 LCD blue backlight display function setting, 5 segments of LED display input/output precise digital level meter, mute and edit status.

Each input has 12-band of independent full parameter equalization, and each output has 15 segments of independent full parameter equalization, the adjustment gain range can be up to ± 20dB, and five equalization modes can be selected, including parameter, high modulation, low modulation, 1st order all pass, and 2nd order all pass, The maximum delay can reach 1000ms in various units of millisecond (ms), meter (m) and foot (ft).

Parameter setting of each channel can copy freely, build-in signal generator. Input processing includes Gates, 2DEQ, Auto-Gain, Compressor etc
