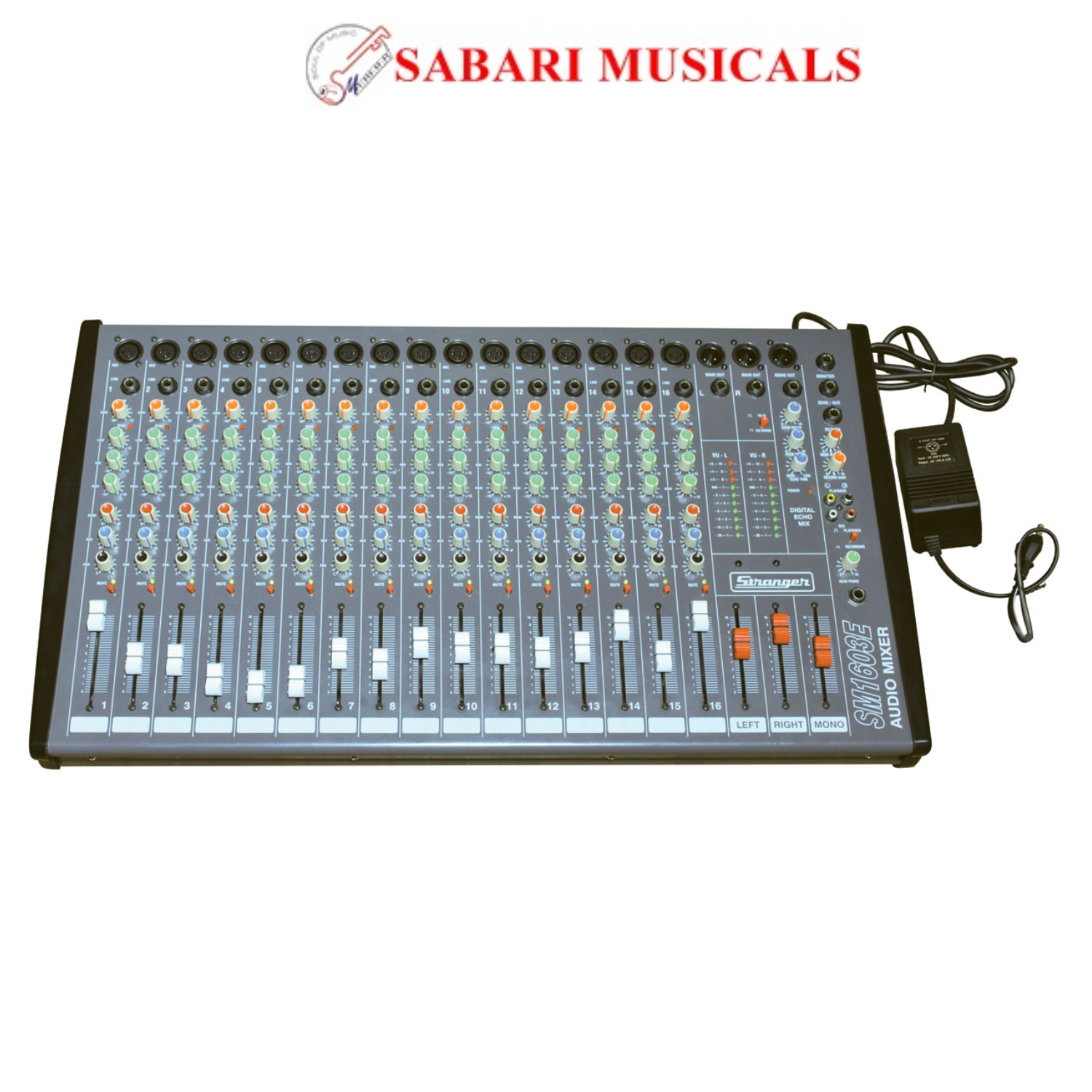

Stranger SM1603E Professional Stereo Echo Mixer

Key Features:

• 16 Input Channels: Plenty of headroom for full bands, multiple microphones, and line-level instruments.

• Built-in Digital Echo: Features a dedicated Echo section with Repeat and Delay controls, perfect for adding depth to vocals and instruments.

• Precision EQ: Individual Gain, Bass, Mid, and Treble controls on every channel for surgical tonal shaping.

• Rugged Build: Housed in a durable metal chassis designed to withstand the rigors of frequent transport and live use.

• Versatile Outputs: Stereo Left/Right Master outputs with individual faders for balanced sound staging.

Technical Specifications SM1603E

16Channel Audio Mixer

• Balanced (Input & Output). Balanced XLR.
• Frequency Response 25 Hz – 20 KHz. | Digital Echo 20 – 400 Mili Sec.
• 60 mm Long Taper Faders.
• Mic. Input 2K Ohms. Line Input 20K Ohms Balanced / 42 dB.
• Gain: -10 dB to -72 dB. S/N Ratio 89 dB. Distortion 0.01%.
• Main Out (L+R) XLR Balanced / Unbalanced PL Socket.
• Stereo RCA Output for Recording.
• 3 Band Active EQ on each Channel (Low, Mid & High).
• 2 AUX send (Pre-fader & Post-fader) level, Pan Control, L & R, Mono &
• Mute Switch on each Channel.
• Power Supply: 23VA Max / 19VA Max @ AC 220V / 50 Hz. (External Adapter)
• Dimension: 662 (W) x 380 (D) x 110 (H) mm. | Weight: 6.600 kg. (approx.)
