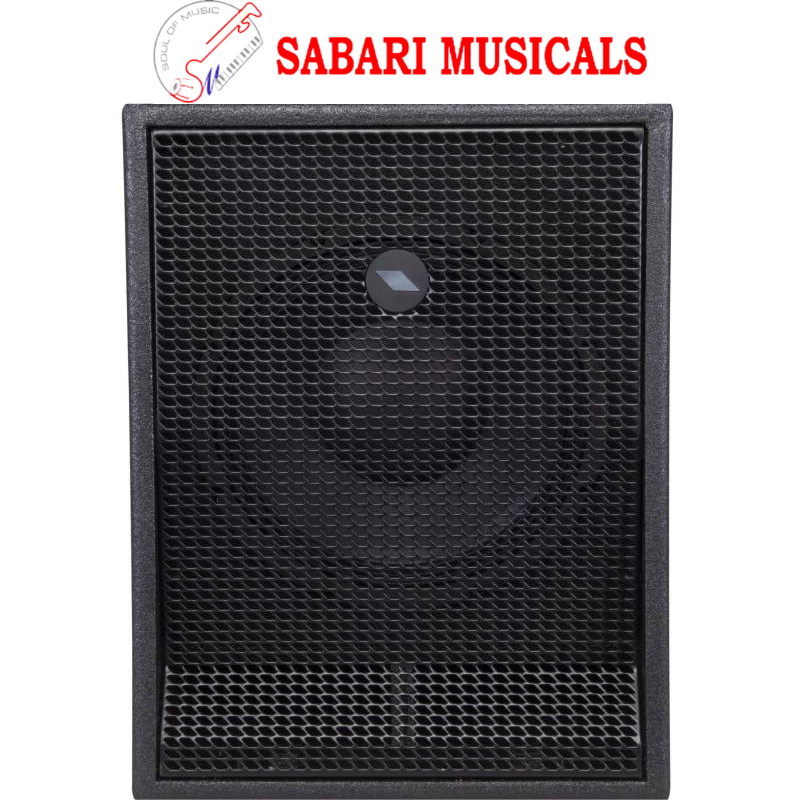

S10A Active Subwoofer Proel

PROEL introduces the S Series, a new range of compact and powerful sub-woofers designed to complement PROEL full-range speakers. The variety of size, power and SPL offered by the four active S models provides, at an unbeatable price point, the perfect low extension solution for any speaker model available in the PROEL range.
All the S models feature high-excursion woofers in a Hybrid Band Pass configuration (HBP). This innovative design provides a higher efficiency compared to direct radiation sub-woofers and, in addition, guarantees a much better coupling of the tuning ducts with the external air, reducing the distortion and the air turbulence, for a more defined sound and deep and punchy lows.
The new CLASS D amplifier modules with SMPS (Switch Mode Power Supply) can generate a massive amount of continuous power in a compact, lightweight and reliable package. All the modules include a STEREO pre-amp section, 24dB/oct. crossover filters with selectable frequency and PHASE reverse switch.
The cabinets are built with 15/18mm plywood and finished with extra-durable polyurethane paint. They feature two flush handles and four sturdy 75mm wheels for an easy transport (S15 and S18 only).

• Compact active HBP sub-woofer
• 10” woofer with 2” VC for a deep and extended response
• 700 W peak power
• STEREO input, link and output
• SPL MAX 119 dB
• Frequency response 46 Hz – 160 Hz

• System type	Hybrid Band Pass subwoofer
  Loudspeaker	10″ woofer with 2″ VC
  Amplifier Continuous Power	350 W
  Frequency Response	46 Hz – 160 Hz
  Max SPL	119 dB
  Connectors	IN: 2 x NEUTRIK COMBO
  OUT: 2 x NEUTRIK XLR-M
  LINK: 2 x NEUTRIK XLR-M
  Controls	Volume, GND lift
  X-over Frequency, Phase
  Power Supply	230 VAC or 120 VAC 50/60 Hz
  Weight	14 kg (30.8lb)
  Cabinet	15/18 mm plywood
  Black anti-scratch paint
  1.5 mm metal grille
  2 handles
  1 x pole socket
  Dimensions (W x H x D)	315x420x495 mm
