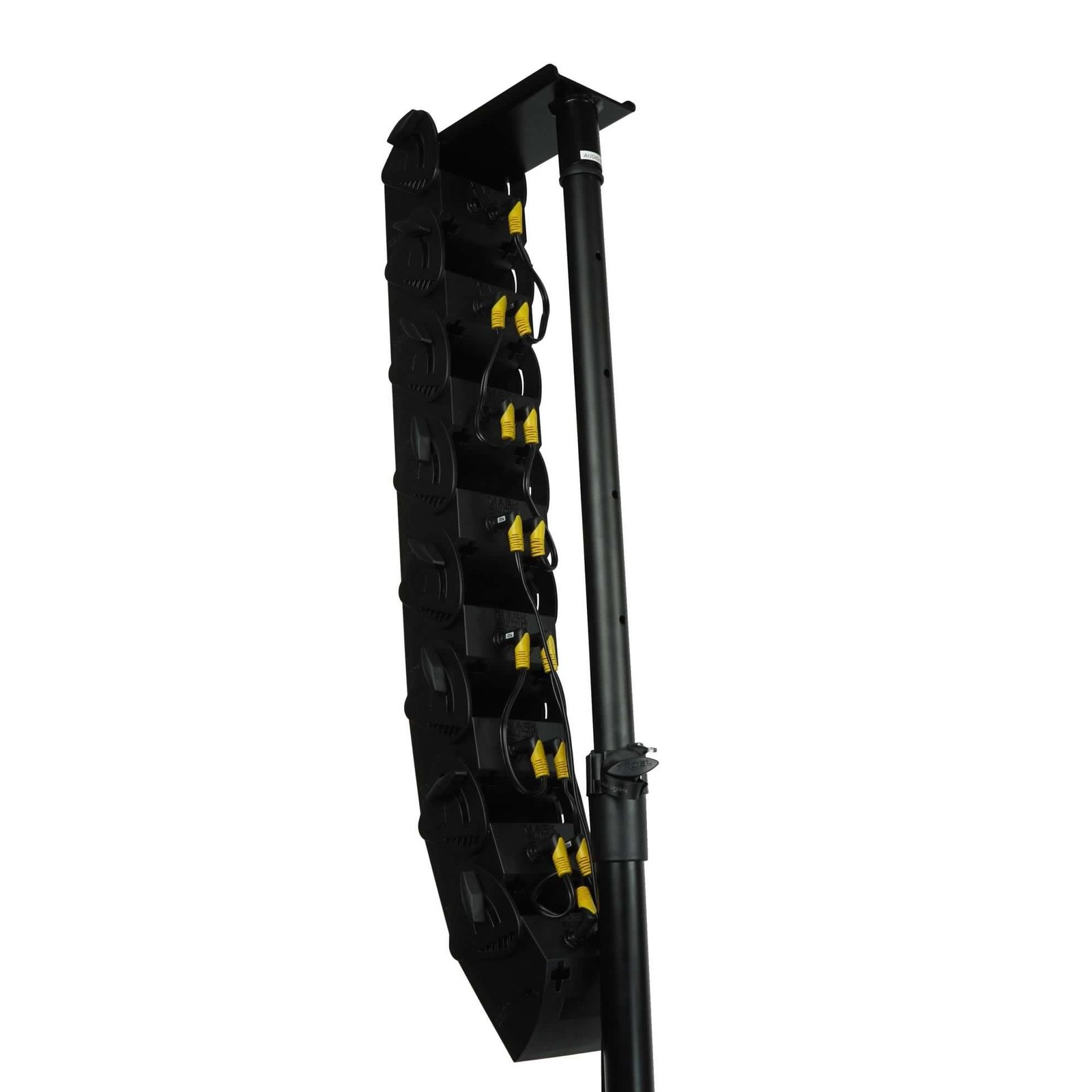

Markbass MAK156009Z AC System 2 Audio System

Technical Features:

MAIN FEATURES

• TOTAL POWER 2.000 W
• 129 dB max SPL
• FREQUENCY RESPONSE 50 Hz – 20 kHz
• 8×4″ neodymium full-range woofer
• 2×10″ subwoofer
• 90° x 30° slightly tilted pattern control
• Innovative DSP processor
• Modularity, pole mountable, easy to use and to transport

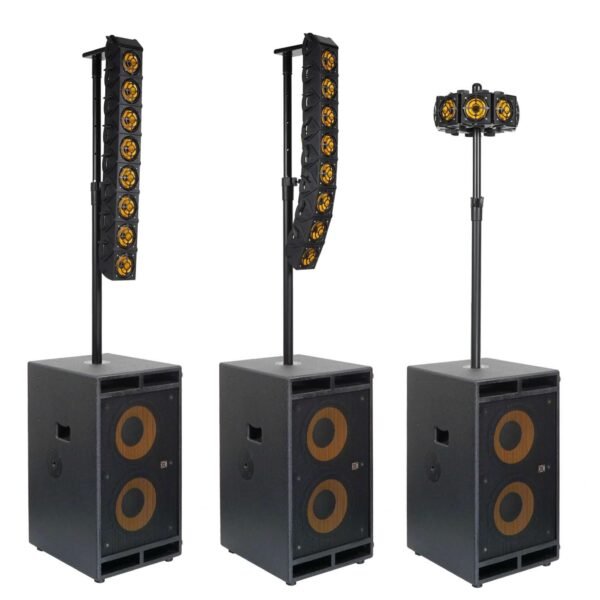

• Adjustable shape (Straight, J-shape, 360°)

MULTIPLE APPLICATIONS

• ONE MAN BAND
• SMALL BAND to BIG ORCHESTRA
• PIANO BAR
• CLUBS and DJ SET
• HOME AND MOVIE THEATER
• CONFERENCE HALL
• CHURCHES

ACOUSTICAL

• FREQUENCY RESPONSE : 50 Hz – 20 Khz
• MAX SPL : 129 dB
• HORIZONTAL COVERAGE ANGLE : 90°
• VERTICAL COVERAGE ANGLE : 30°
• SATELLITES : 8 x 4”, 8 Ohm
• SUB : 2 x 10” , 4 Ohm

INPUT/OUTPUT

• INPUT CONNECTORS : Jack – XLR female – AUX
• OUTPUT CONNECTORS : XLR male
• INPUT SENSITIVITY : -1,1 dBu (@ 1 kHz)

PROCESSOR

• CROSSOVER FREQUENCIES : 180 Hz
• PROTECTIONS : Thermal, rms
• LIMITER : Soft limiter
• CONTROLS : Volume, EQ

AMPLIFIER

• TOTAL POWER (4ohm) : 2.000 W PEAK
• HIGH FREQ. POWER (4ohm) : 1.000 W PEAK
• LOW FREQ. POWER (4ohm) : 1.000 W PEAK
• TOTAL POWER RMS (4ohm) : 1.000 W RMS
• HIGH FREQ. POWER RMS (4ohm) : 500 W RMS
• LOW FREQ. POWER RMS (4ohm) : 500 W RMS
• COOLING : Convection
• CONNECTIONS : VDE connector

CABINET

• CABINET MATERIAL : Multiply poplar
• HANDLES : 2 Side
• COLOUR : Black
• POLE MOUNT/CAP : Yes

PHYSICAL

• SYSTEM HEIGHT (Horizontal Sub) : min 125cm (49″) / max 170cm (67”)
• TOTAL WEIGHT : 29 kg (64 lbs)
• SUBWOOFER WEIGHT : 23 kg (50,7 lbs)
• SATELLITES WEIGHT : 6 kg (13,2 lbs)
• SYSTEM DEPTH : 48cm (19”)
• SYSTEM WIDHT : 43cm (17”)
• SYSTEM HEIGHT (Vertical Sub) : min 143 cm (56′) / max 188 cm (74”)

ACCESSORIES

• OPTIONALS : Satellites transport bag included
• OPTIONALS : Subwoofer cover optional
