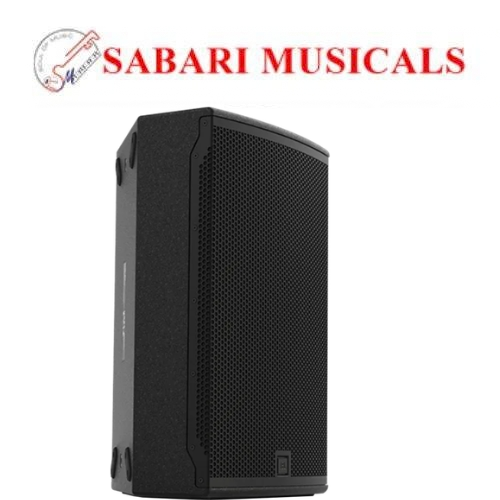

JBL SRX912M 12-inch Powered Speaker

JBL SRX912M Features:

• 2-way powered, point-source multipurpose speaker perfect for PA and high-performance monitoring applications
• 12-in. LF driver and JBL’s Differential Drive technology extend low frequencies to 50Hz and boost headroom
• 1.5-in. HF annular-diaphragm compression driver complements the arrangement
• 2-in. voice coils provide reliable operation by balancing output, weight, and thermal performance
• Optimally voiced for use with other point-source SRX900 units
• 90° x 60° Progressive Transition waveguide provides smooth coverage and exceptional SPL
• Tap into an 80Hz highpass preset when using SRX900 subwoofers
• Highly adaptable thanks to onboard DSP, including 24 adjustable filters, 2,000ms delay, management tools, and a rear-mounted LCD
• Rugged Baltic birch housing with 42° full-range angling and 6 x M10 Quick Link mounting points for suspension

• Tech Specs

  • Powered:Yes
  • Power Configuration:Bi-amped
  • LF Driver Size:12″ Woofer
  • HF Driver Size:1.5″ Annular-diaphragm Compression Driver
  • LF Driver Power Amp:580W
  • HF Driver Power Amp:300W
  • Total Power:880W Peak, 600W Continuous
  • Inputs:1 x XLR
  • Outputs:1 x XLR
  • Data I/O:2 x EtherCON
  • Frequency Range:50Hz-20kHz (-10dB)
  • Frequency Response:60Hz-19kHz (-3dB)
  • Maximum Peak SPL:133dB
  • Horizontal Coverage Angle:90°
  • Vertical Coverage Angle:60°
  • Enclosure Material:Baltic Birch Plywood
  • Mounting Options:Pole, Floor Wedge, 6 x M10 Fly Points
  • Power Source:2 x PowerCON TRUE1 (cable sold separately)
  • Height:23″
  • Width:15″
  • Depth:13.4″
  • Weight:45 lbs.
