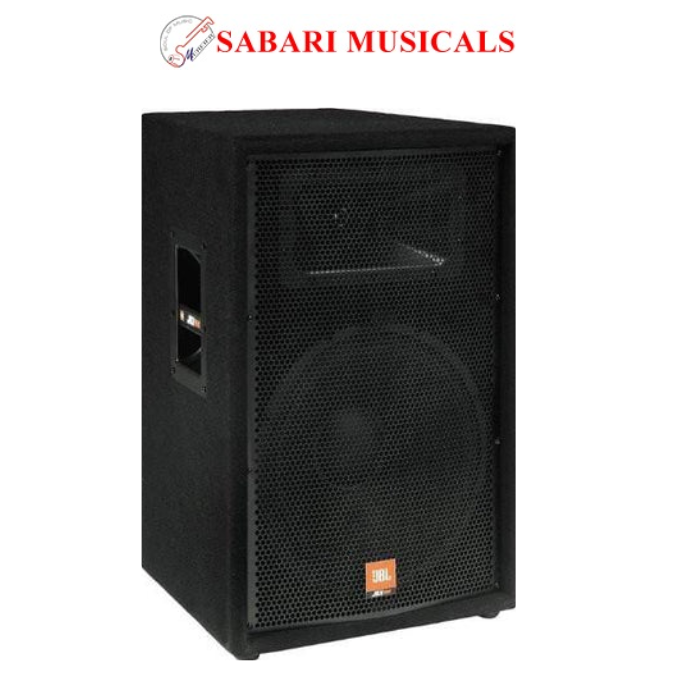

| This trapezoidal, 15″ speaker system is at home in live sound, dance music and speech reinforcement.
Features :
- JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- Ferro-fluid cooled compression driver with titanium diaphragm improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition highfrequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.
Specification:
| Power Rating |
|
250 W / 1000W |
| Frequency Range |
|
38 Hz – 16 kHz
(-10 dB) |
Dimensions
(H x W x D) |
|
699 mm x 460 mm x 432 mm
(27.5 in x 18.1 in x 17 in) |
| Frequency Response |
|
50 Hz – 12.5 kHz
(±3 dB) |
| Sensitivity |
|
98 dB SPL
(1w/1m) |
| Recommended Amplifier Power |
|
250 W to 500 W into 8 ohms |
| Nominal Dispersion |
|
90º x 50º |
| Crossover Frequency |
|
1.6 kHz |
| High Frequency Driver |
|
JBL 2412 1 in exit compression driver mounted on Progressive Transition Waveguide |
| Low Frequency Driver |
|
JBL M115-8A |
| Input Connectors |
|
Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1); parallel |
|
