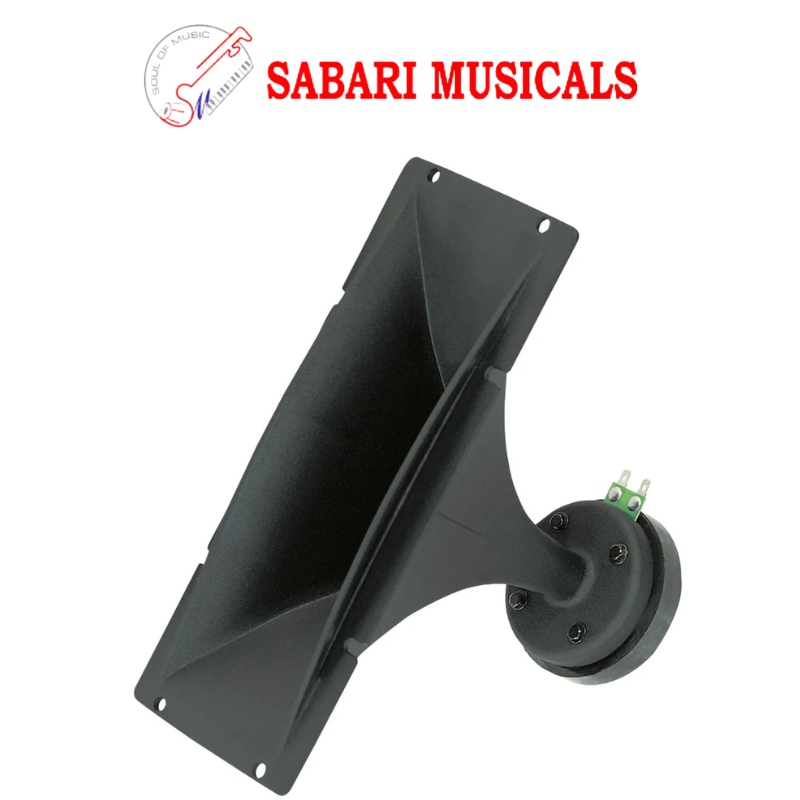

Ahuja CDH-200 20 Watts Compression Horn Driver
Original price was: ₹1,730.00.₹1,557.00Current price is: ₹1,557.00.
| Brand | Ahuja |
| Model | CDH-200 |
| Power Capacity | 20W RMS |
| Throat Diameter | 25.4 mm (1”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 105dB |
| Usable Frequency Range | 3kHz-15kHz |
| Recommended Crossover | 4kHz 12dB/oct |
| Voice Coil Diameter | 25.4 mm |
| Diaphragm Material | Phenolic Resin |
| Voice Coil Material | Round Copper Wire |
| Voice Coil Former | Nomex |
| Horn Material | ABS with Glass Filled Black Polycarbonate |
| Nominal Coverage Angle | H100° x V80° (-5 dB) |
| Horn Cut off Frequency | 780Hz |
| Mounting Cutout | W235 × H82 mm |
| Overall Dimensions | W270 × H110 × D205 mm |
| Weight | 1.36kg |
The Ahuja CDH-200 20 Watts Compression Horn Driver. Professional compression driver-horn CDH-200 loudspeaker is suitable for medium-power speaker systems. It is ideal for use in a 200W to 300W system. Can be combined with a single Low-Frequency speaker like L12-MB150 or L15-MB300, to make an excellent medium-power full-range speaker system.
CDH-200 Features:
- Power capacity: 20 W RMS
- Sensitivity: 105 dB
- Usable frequency range: 3 kHz–15 kHz
- Recommended crossover: 4 kHz, 12 dB/oct
- Voice coil diameter: 1″ (25.4 mm)
- Mounting cutout: W235 x H82 mm
- Overall dimensions: W270 x H110 x D205 mm
- Weight: 1.36 kg
- Throat diameter: 25.4 mm (1 in)
- Power capacity, horn cut off frequency: 20 W RMS, 780 Hz
