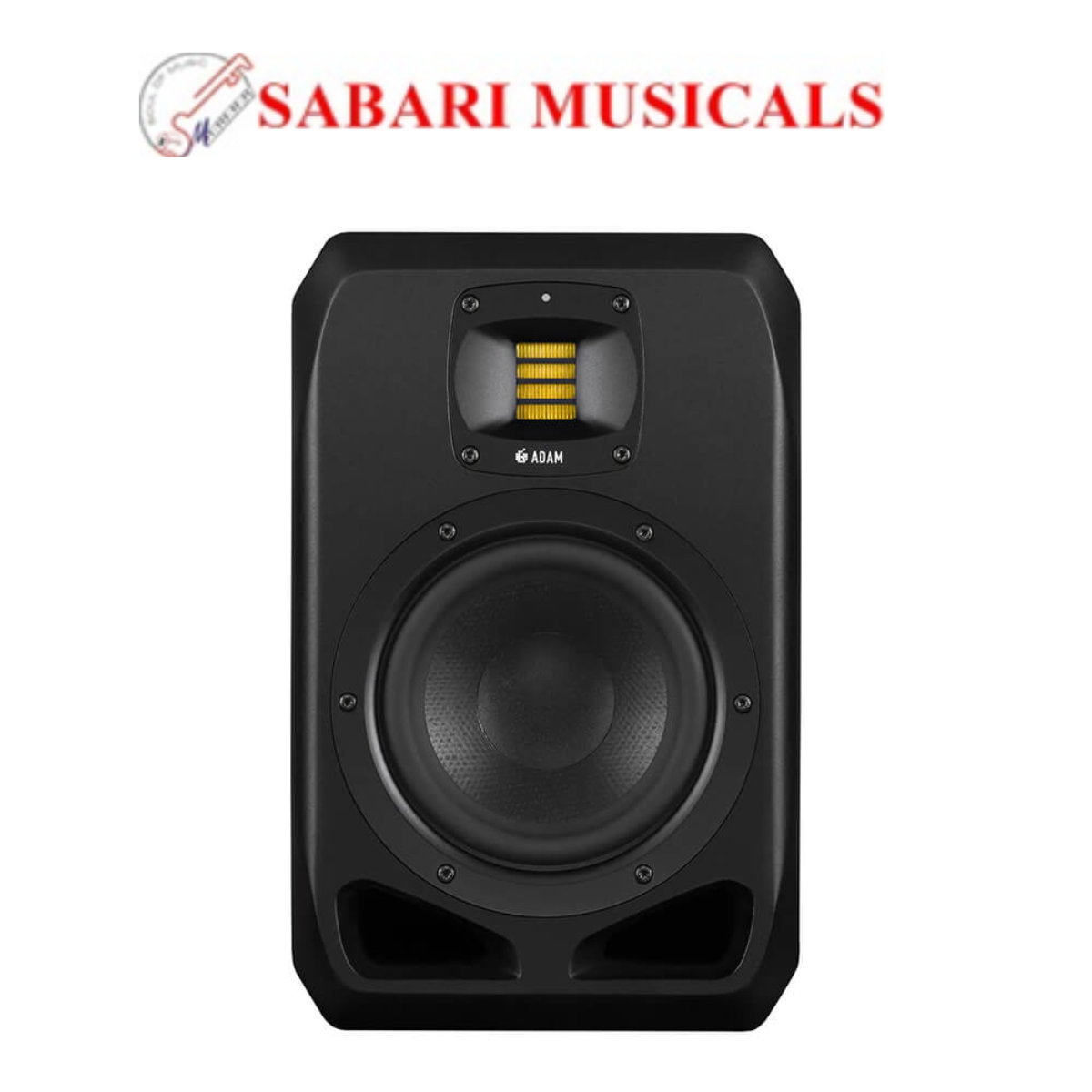

ADAM Audio S2V 7inch Powered Studio Monitor

Adam  Audio S2V Overview

Adam Professional Audio’s S2V is an active studio reference monitor built for vertical positioning in small to medium control rooms. It has a 7″ HexaCone woofer and a handcrafted folded-ribbon tweeter and can provide 350W RMS of total amp power. The Adam-designed high-range propagation system (HPS) waveguide ensures a wide, stable sweet spot.

The ADAM Audio S2V, designed for transparency, has an excellent frequency response of 35 Hz – 50 kHz. A wide range of DSP parameters, from equalization to delay, are available for adapting the monitor to the environment and personal tastes. The rear panel has an OLED display and a push-button/rotary encoder for parameter adjustment. Connect a computer to the USB Type-A connector for easy remote access to all S2V settings.

Two inputs, balanced analog and AES3 digital, are accessible via XLR connectors. An XLR AES3 output is provided to transport digital signals to the second monitor, as required for proper digital signal flow. Adjust the input sensitivity and output level as appropriate. Load and store voicing presets to quickly configure monitor parameters. If you want to make more tonal modifications, there is a 6-band parametric EQ with high-pass and low-pass filters. For timing changes, use a delay of up to 5 milliseconds.

7-inch ELE low-frequency driver

ADAM Audio S2V. S series monitor speakers have drivers that are the result of years of in-house research and development, as well as the most recent developments in technology and materials science. ADAM’s expanded Linear Excursion (ELE) bass drivers, which were designed specifically for the S series, use the Symmetrical Magnet Assembly (SMA) to provide optimum low-frequency reproduction with expanded dynamic range and coloration-free sound.

The ELE driver has a strong yet lightweight honeycomb driver cone, a highly efficient, self-cooling linear magnet assembly, linear suspension and damping systems with a low-loss speaker surround, a vented symmetrical voice coil, and an optimized driver chassis/basket design. The S2V’s 7″ woofer responds down to 35Hz, making it an ideal choice for nearfield monitoring in control rooms and mastering suites without the need for a subwoofer.

S-ART folded-ribbon tweeters

ADAM Audio’s S-ART folded-ribbon tweeter, unlike conventional loudspeakers, employs a pleated diaphragm capable of moving air four times quicker than the folds themselves. The S-ART tweeter, handcrafted to the finest specifications, produces spectacular highs up to 50kHz and fills the soundfield with astonishing clarity, authentically communicating every facet of the source material. The S-ART high-frequency driver, manufactured and thoroughly tested in ADAM’s Berlin facilities, is a rare exception in today’s automated mass manufacturing.

proprietary waveguide technology.

ADAM Audio’s innovative waveguide technology benefits both the DCH midrange driver and the S-ART tweeter, improving the precision of the drivers’ off-axis response. Milled from solid aluminum, the newly developed High-frequency Propagation Systems (HPS) help deliver stable, wide-ranging dispersion, allowing production teams of two or more people to work in the stereo or multi-channel sweet spot at the same time, which is common in larger control rooms.

Authoritarian ICE Power

recognizes that underpowering is never an option, having spent decades building professional sound systems for recording and broadcast studios, as well as venues of all sizes. Serious reference monitors like the S2V require authoritative power, which ADAM Audio provides with its strong patented 350-watt PWM ICE Power bi-amplification technology. The ADAM Audio S2V’s bass unit is powered by a 300W Class D amplifier, with an extra 50W Class D amplifier devoted to the S-ART treble driver. The S2V is a reference monitor developed for discriminating audio professionals and mission-critical applications, combining the no-compromise accuracy of ADAM Audio’s bespoke drivers with the company’s own amplification.

ADAM Audio S2V Custom DSP engine with linear response.

Using cutting-edge SHARC processing technology, the S series’ unique DSP optimizes the system’s loudspeaker crossovers to produce linear response throughout the full frequency range while also providing user sound-tuning EQ, room tuning, and voicing capabilities. The DSP also provides limiter-based high-frequency driver protection, processes signals from the AES3 digital inputs, and supports a variety of extension options. Software upgrades are readily performed using the system’s USB connector, which also allows you to connect to PCs and control DSP features through software.

Designed without compromises.

The ADAM Audio S2V S series monitors were created without compromise to be high-precision professional reference monitors that flawlessly replicate any signal fed into their inputs. You can expect exceptional transparency, dynamic response, and flexibility in placement and operation, as well as an open, natural, and non-fatiguing sonic presentation that will delight your ears and allow you to make sound decisions even during lengthy recording and mixing sessions.

ADAM Audio’s large cabinet architecture is scientifically engineered to prevent unwanted vibrations and coloring, while its rounded corners reduce diffraction distortion. The front baffle has generously carved bass reflex holes that help offer bass reproduction with very minimal compression and enable installation close to walls.

ADAM Audio S2V 7 inch Powered Studio Monitor Features:

• Vertical 2-way system featuring a 7″ HexaCone woofer and S-ART tweeter.
• The S-ART tweeter is handcrafted in Berlin and constructed to precise specifications.
• The newly built HPS waveguide is made from a solid aluminum block.
•  Custom-built Extended Linear Excursion (ELE) bass driver.
•  Uniquely developed Symmetrical Magnet Assembly (SMA).
•  Large bass reflex ports on the front baffle.
•  Efficient 350W PWM ICE Power Bi-Amplification.
•  Linear frequency response from 35Hz to 50kHz.
•  Peak sound pressure per pair at 1m exceeds 120 dB.
•  Custom DSP engine.
•  Analog XLR inputs.
•  AES3 digital input/output
